Phase 3 - Container Infrastructure

1. Create ECR repository and push backend image

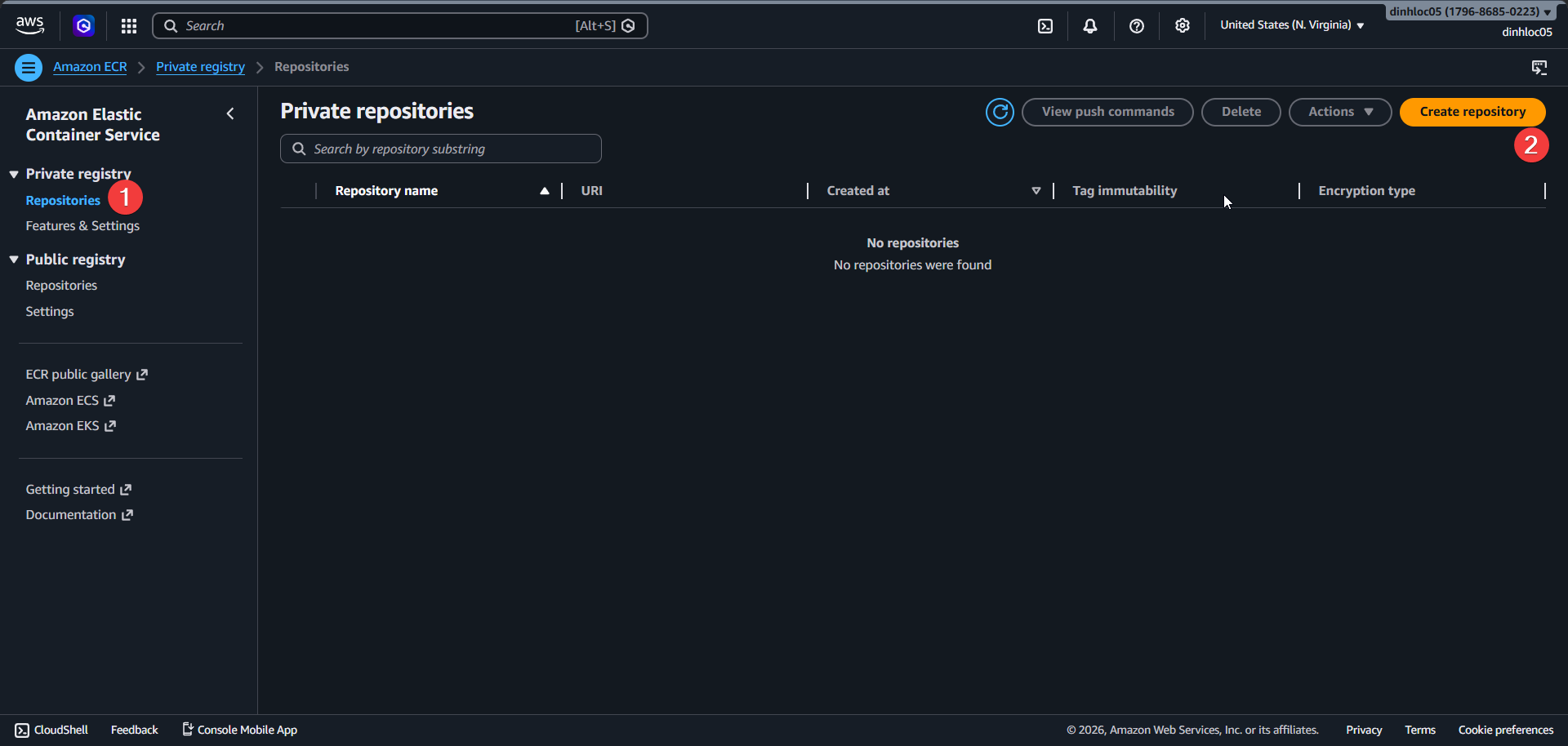

  • Open ECR Console - Repositories - Create repository. Create ECR repository screen 1

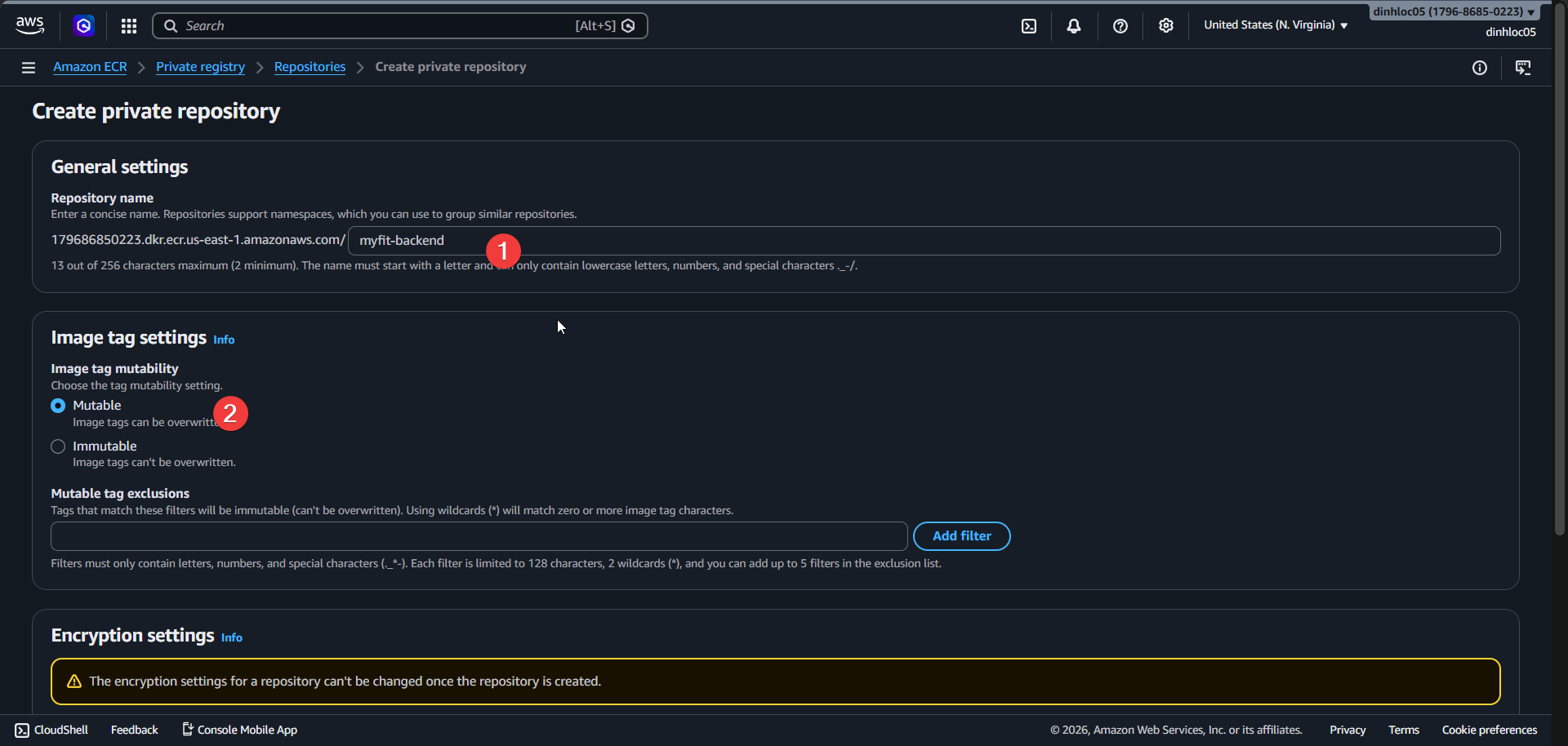

  • Enter Repository name: myfit-backend.

  • Select Image tag mutability: MUTABLE.

  • Select Encryption configuration: AES256.

  • Confirm repository URI format: <your-account-id>.dkr.ecr.us-east-1.amazonaws.com/myfit-backend. Create ECR repository screen 2

Build and push image to ECR:

aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin <your-account-id>.dkr.ecr.us-east-1.amazonaws.com
docker build -t <your-account-id>.dkr.ecr.us-east-1.amazonaws.com/myfit-backend:latest .
docker push <your-account-id>.dkr.ecr.us-east-1.amazonaws.com/myfit-backend:latest

2. Create ECS cluster

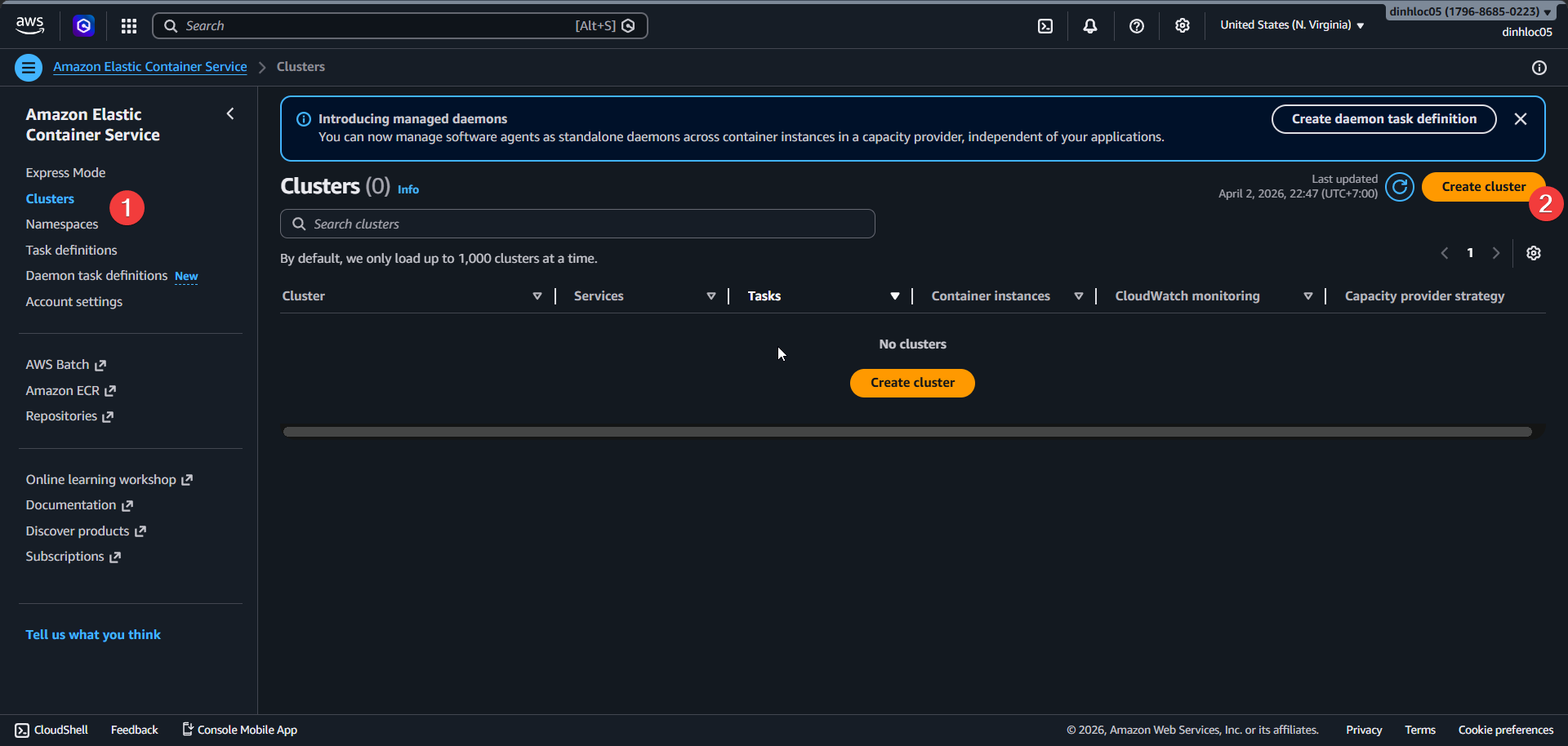

  • Open ECS Console - Clusters - Create cluster. Create ECS cluster screen 1

  • Enter Cluster name: <your-ecs-cluster-name>.

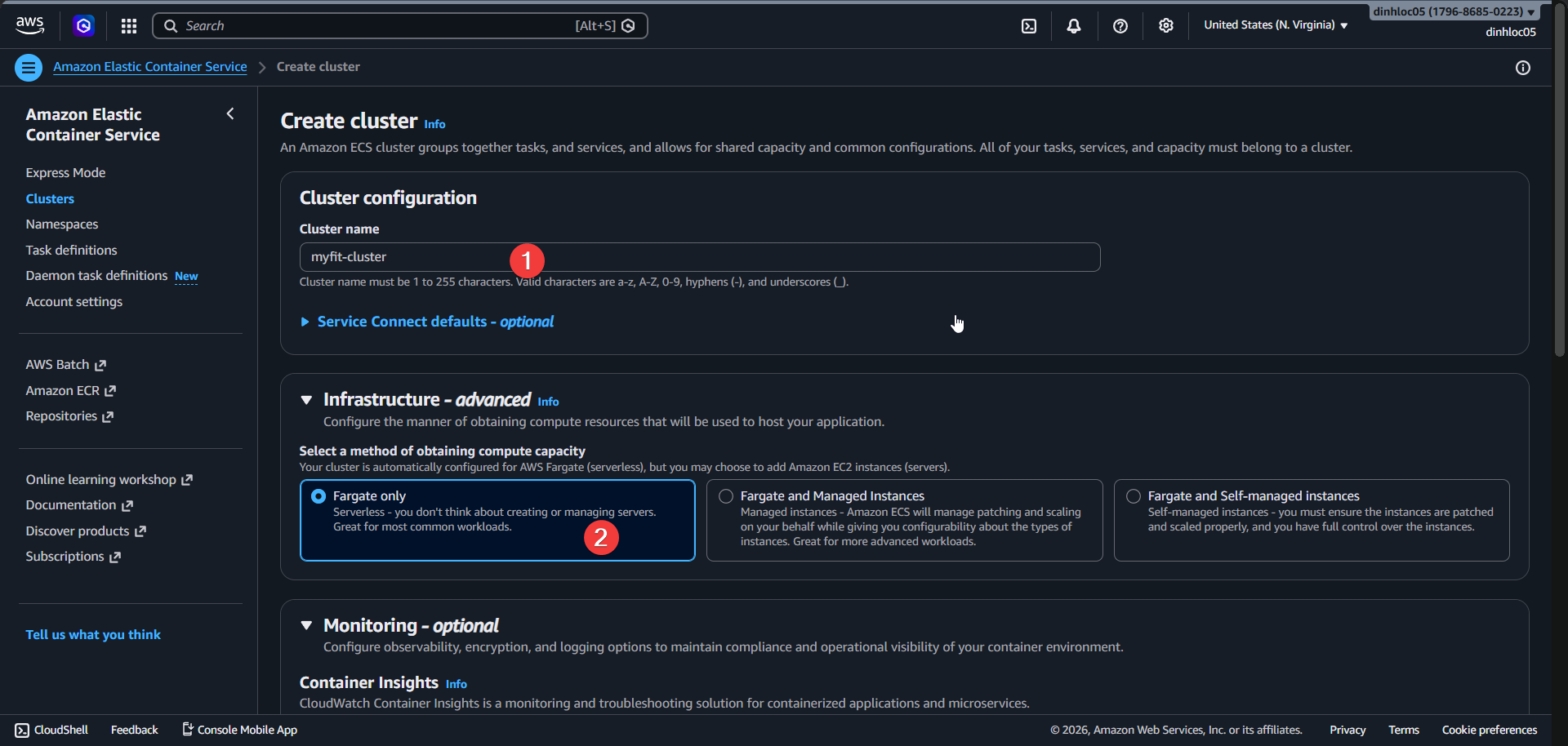

  • Pick Fargate only. Create ECS cluster screen 2

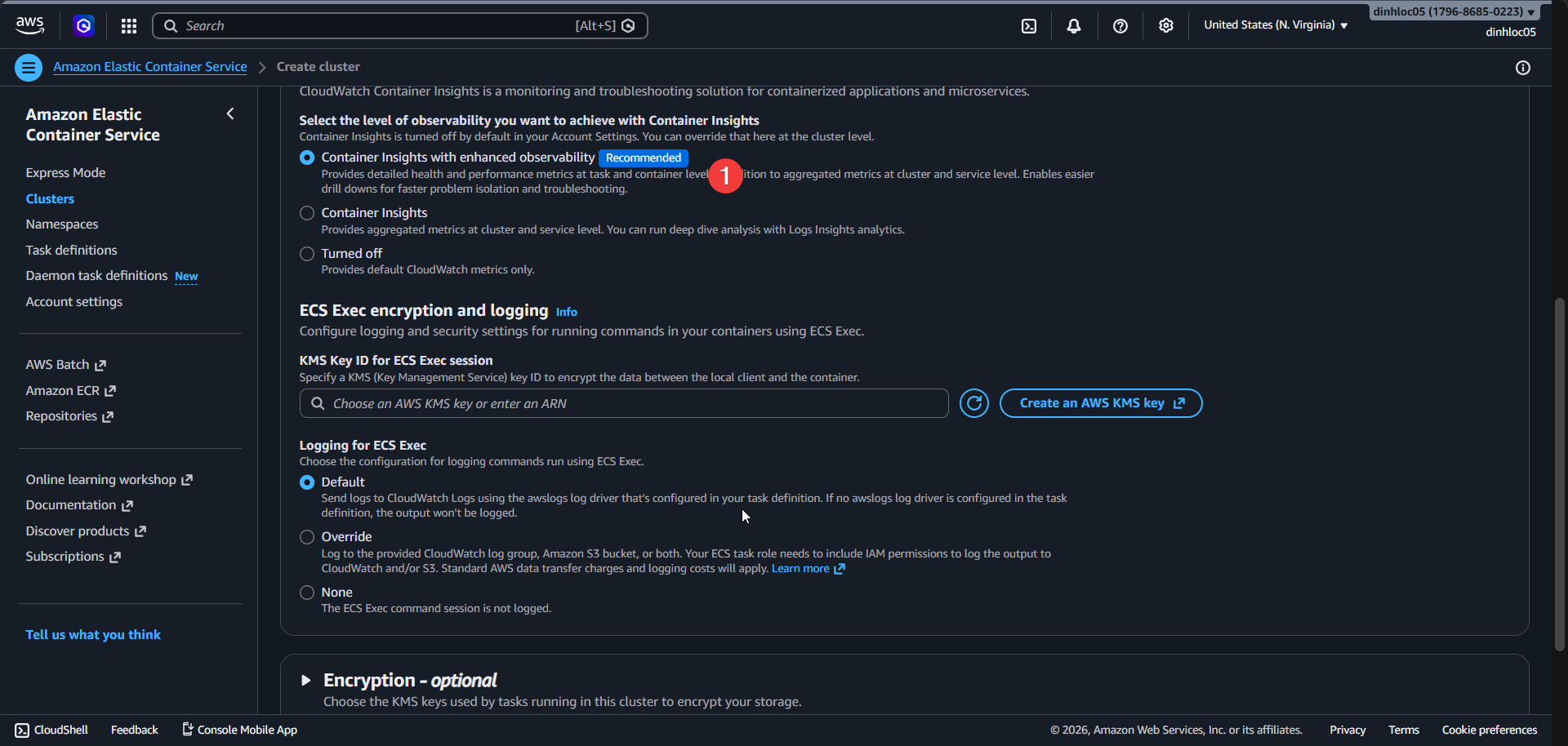

  • Set Container Insights to either Disable or enable. Create ECS cluster screen 3

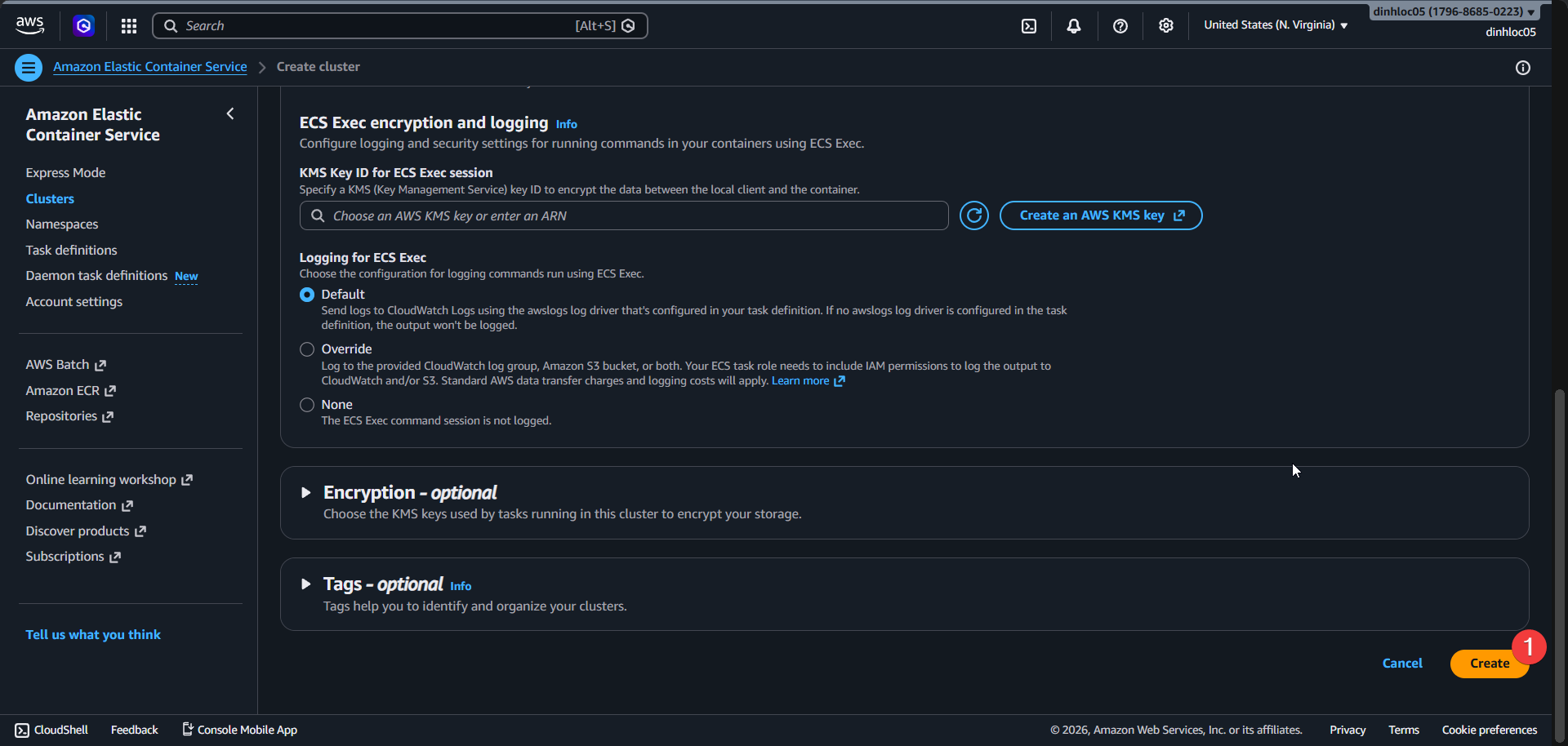

  • Click Create. Create ECS cluster screen 4

  • Confirm cluster status: ACTIVE.

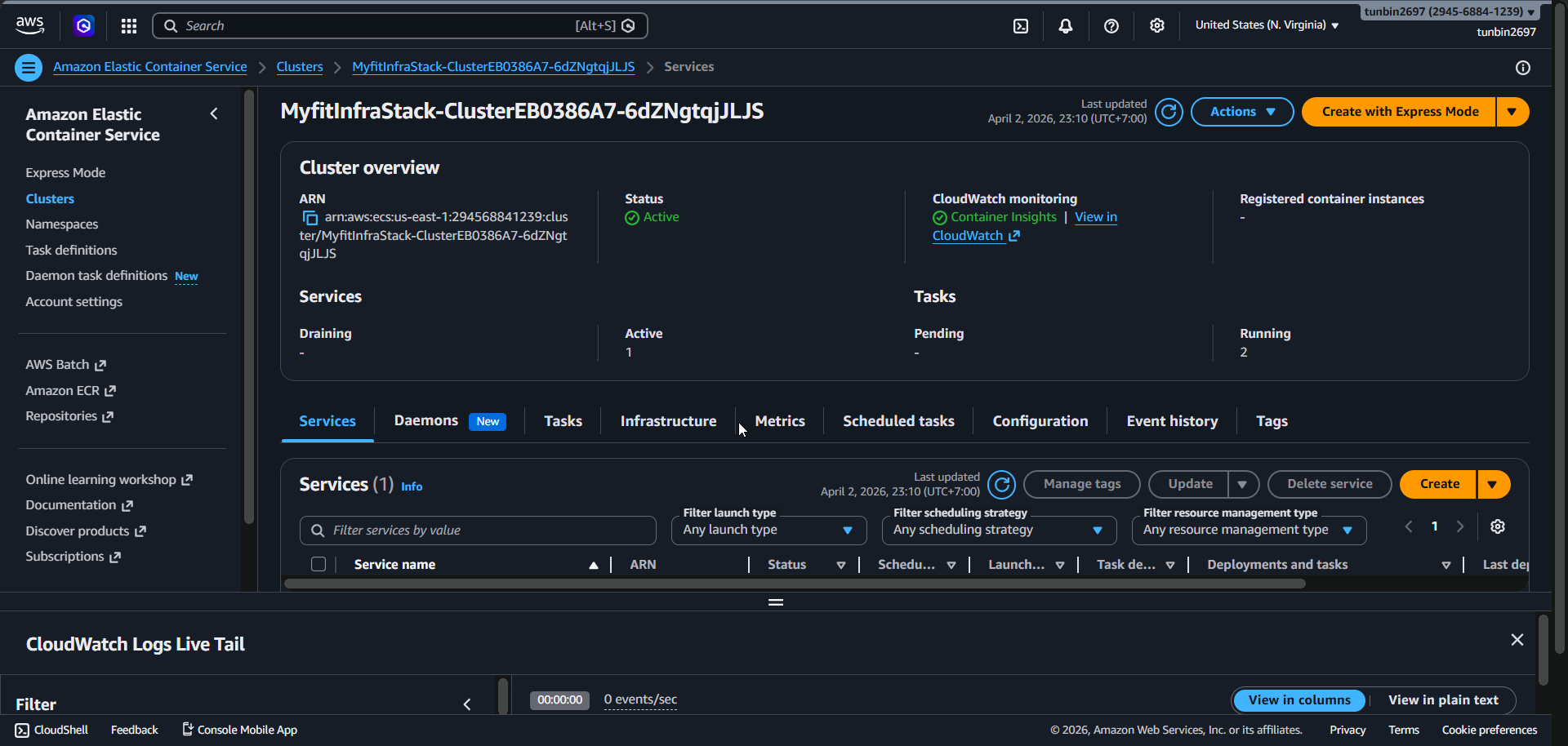

  • Copy cluster ARN: <your-cluster-arn>. ECS cluster result

3. Register backend task definition

  • Open ECS Console - Task definitions - Create new task definition.

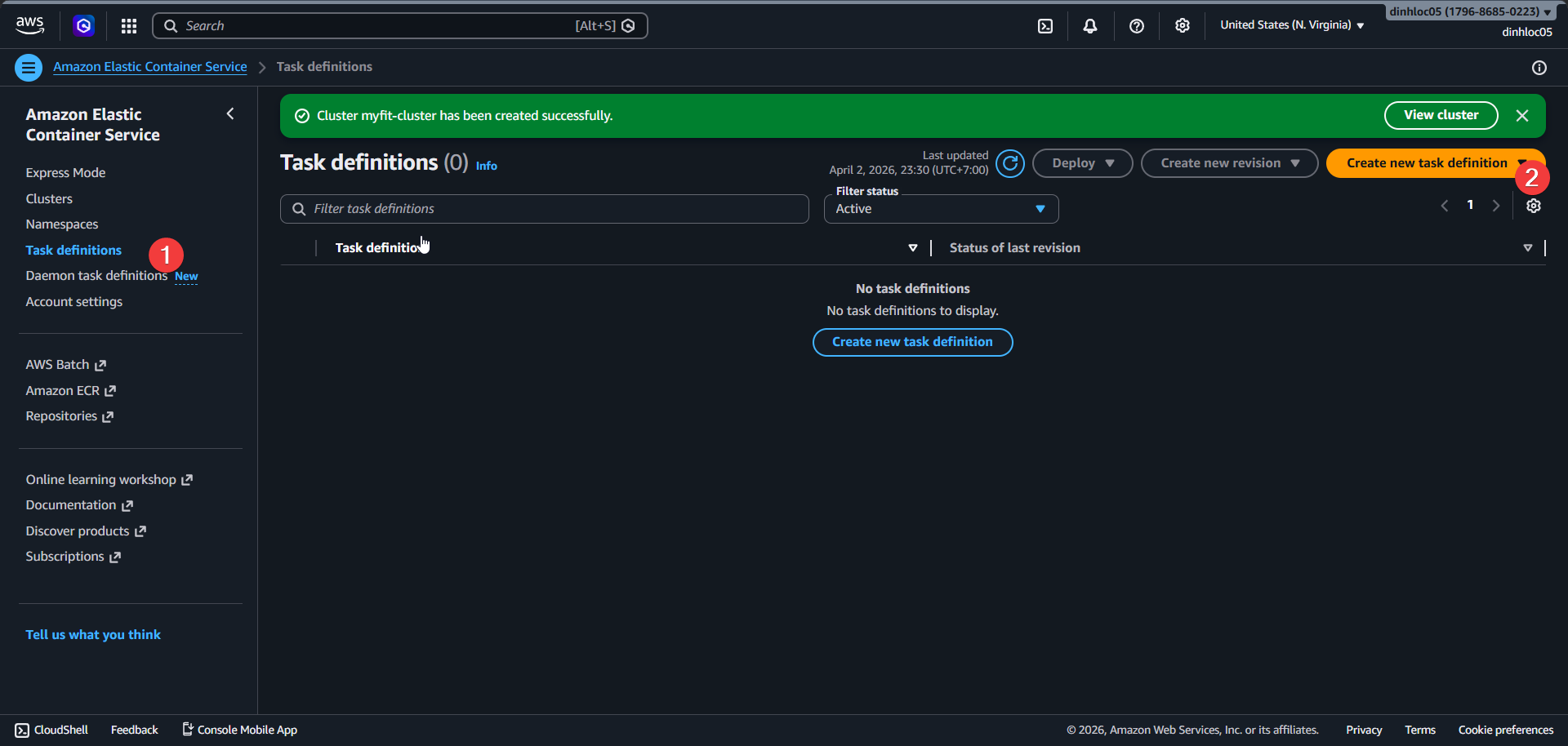

Create task definition screen 1

  • Paste and edit this JSON base on your actual arn service ID:

{
    "family": "myfit-backend-task",
    "taskRoleArn": "arn:aws:iam::YOUR_ACCOUNT_ID:role/myfit-task-role",
    "executionRoleArn": "arn:aws:iam::YOUR_ACCOUNT_ID:role/myfit-task-execution-role",
    "networkMode": "awsvpc",
    "requiresCompatibilities": [
        "FARGATE"
    ],
    "cpu": "256",
    "memory": "512",
    "containerDefinitions": [
        {
            "name": "web",
            "image": "YOUR_ACCOUNT_ID.dkr.ecr.us-east-1.amazonaws.com/myfit-backend:latest",
            "essential": true,
            "portMappings": [
                {
                    "containerPort": 8080,
                    "hostPort": 8080,
                    "protocol": "tcp"
                }
            ],
            "environment": [
                {
                    "name": "SPRING_PROFILES_ACTIVE",
                    "value": "prod"
                },
                {
                    "name": "AWS_REGION",
                    "value": "us-east-1"
                },
                {
                    "name": "DB_URL",
                    "value": "jdbc:postgresql://YOUR_RDS_ENDPOINT:5432/myfit?ssl=true&sslmode=require"
                },
                {
                    "name": "CORS_ALLOWED_ORIGINS",
                    "value": "https://YOUR_DOMAIN,https://*.cloudfront.net,http://localhost:8081,http://localhost:19006"
                },
                {
                    "name": "COGNITO_ISSUER_URI",
                    "value": "https://cognito-idp.us-east-1.amazonaws.com/YOUR_USER_POOL_ID"
                },
                {
                    "name": "COGNITO_USER_POOL_ID",
                    "value": "YOUR_USER_POOL_ID"
                },
                {
                    "name": "S3_BUCKET_NAME",
                    "value": "YOUR_MEDIA_BUCKET_NAME"
                }
            ],
            "secrets": [
                {
                    "name": "DB_USERNAME",
                    "valueFrom": "arn:aws:secretsmanager:us-east-1:YOUR_ACCOUNT_ID:secret:YOUR_DB_SECRET_NAME:username::"
                },
                {
                    "name": "DB_PASSWORD",
                    "valueFrom": "arn:aws:secretsmanager:us-east-1:YOUR_ACCOUNT_ID:secret:YOUR_DB_SECRET_NAME:password::"
                },
                {
                    "name": "BEDROCK_API_KEY",
                    "valueFrom": "arn:aws:secretsmanager:us-east-1:YOUR_ACCOUNT_ID:secret:YOUR_BEDROCK_SECRET_NAME"
                }
            ],
            "logConfiguration": {
                "logDriver": "awslogs",
                "options": {
                    "awslogs-group": "/ecs/myfit-backend",
                    "awslogs-region": "us-east-1",
                    "awslogs-stream-prefix": "backend",
                    "awslogs-create-group": "true"
                }
            }
        }
    ]
}

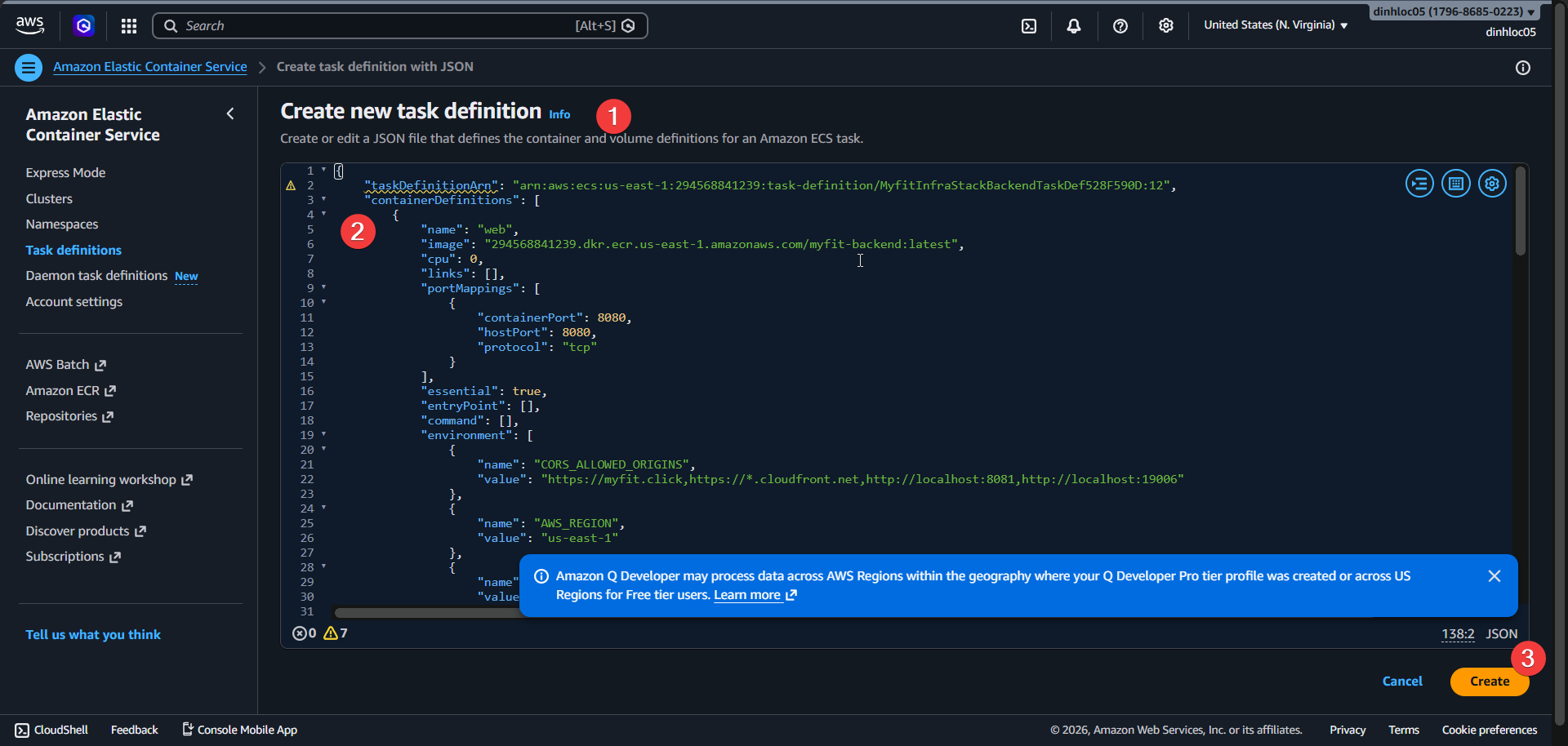

  • Click Create. Create task definition screen 2

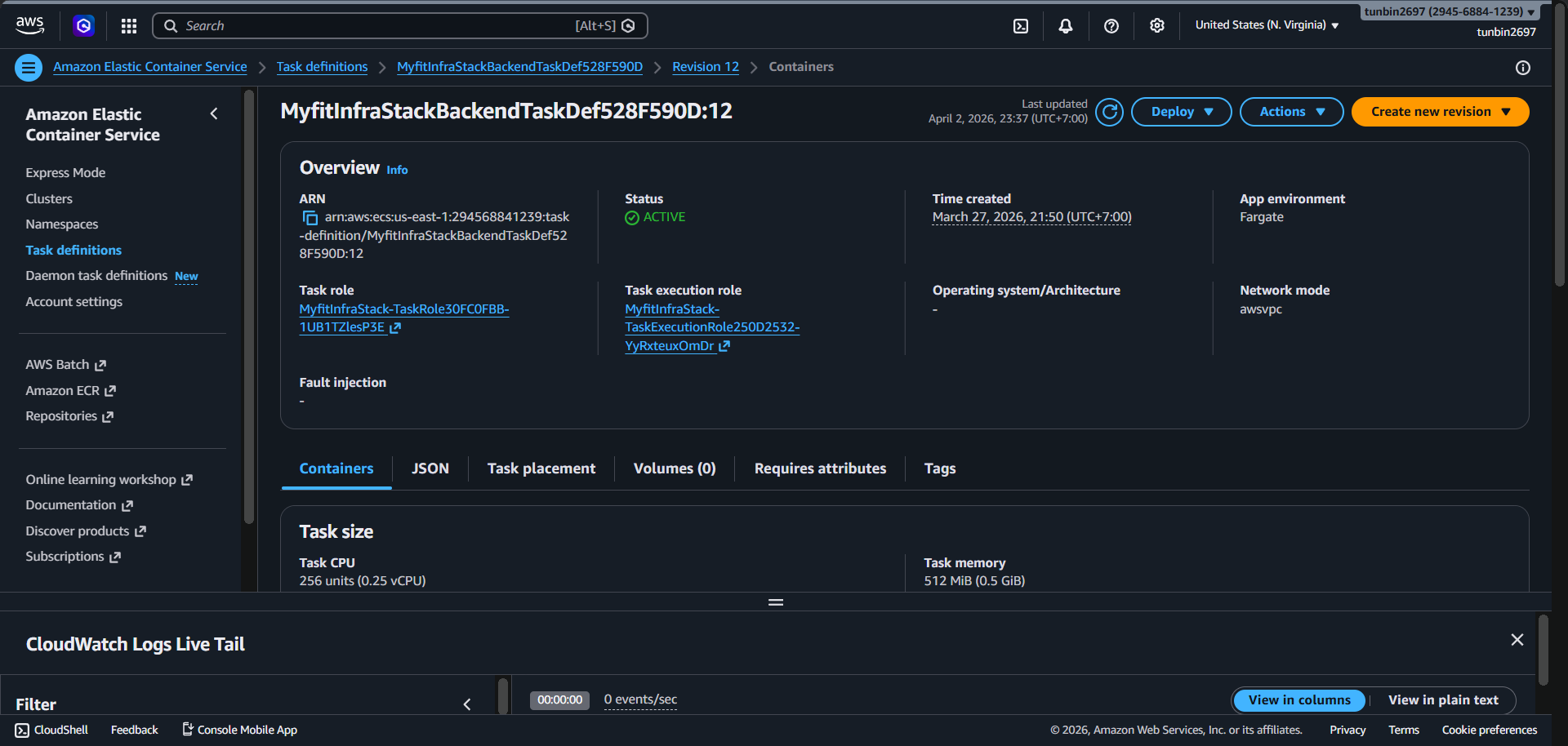

  • Confirm task definition status: ACTIVE. Task definition result

4. Phase completion checklist

  1. Confirm ECR repository myfit-backend exists.
  2. Confirm image tag latest is pushed.
  3. Confirm ECS cluster status is ACTIVE.
  4. Confirm task definition status is ACTIVE.
  5. Confirm task definition uses FARGATE, awsvpc, CPU 256, memory 512.
  6. Confirm container web uses image <your-account-id>.dkr.ecr.us-east-1.amazonaws.com/myfit-backend:latest and port 8080/tcp.
  7. Confirm environment variables, secrets, and awslogs values match section 3.
